Name: RY-V1400 4 Colors Flexo Printing Machine
Brand: DAKIOU
SKU: 00158
Rating: 4.1 (129 reviews)

Structure

1.The machine adopt with synchronous belt drive and hard gear face gear box. The gear box adopt with synchronous belt drive each printing group high precision planetary gear oven(360 º adjust the plate) gear driving the press printing roller

2.After printing, long running material space ,it can make the ink drying easily,better results

Parameters

TYPE	4-1400 TYPE	4-1300 TYPE	4-1200 TYPE	4-1000 TYPE	4-800 TYPE
Max. Printing material width	1400mm	1300mm	1200mm	1000mm	800mm
Max. Printing width	1360mm	1260mm	1160mm	960mm	760mm
Max. Unwinding diameter	1300mm	1300mm	1300mm	1300mm	1300mm
Max. Rewinding diameter	1300mm	1300mm	1300mm	1300mm	1300mm
Printing length range	230-1000mm	230-1000mm	230-1000mm	230-1000mm	230-1000mm
Printing speed	5-100m∕min	5-100m∕min	5-100m∕min	5-100m∕min	5-100m∕min
Register precision	≤±0.15mm	≤±0.15mm	≤±0.15mm	≤±0.15mm	≤±0.15mm
Thickness of plate (including the thickness of double sides glue)	2.28mm+0.38mm	2.28mm+0.38mm	2.28mm+0.38mm	2.28mm+0.38mm	2.28mm+0.38mm
Dimension	820023002500	8200X2300X2500	8200X2250X2500	8200X2100X2500	8200X1900X2500
Weight (approx.)	6.5T	6.1T	5.58T	5.1T	4.5T
Power	24KW	21KW	21KW	21KW	19KW

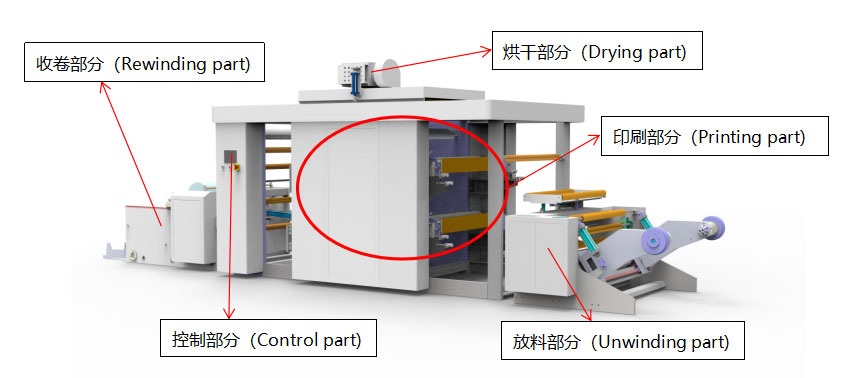

Products structure picture
