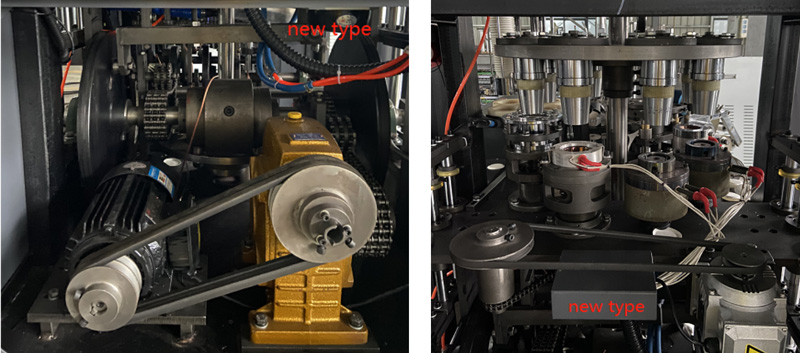

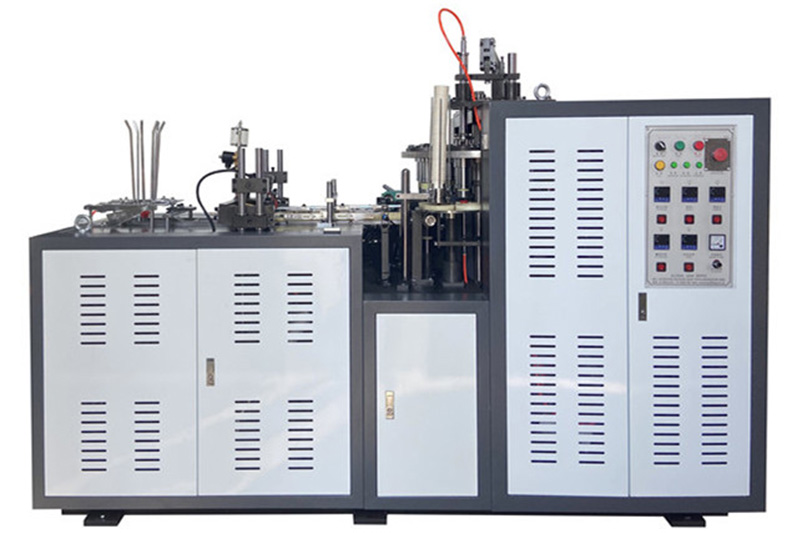

ZB-D12S Automatic paper cup forming machine（vertical shaft and gear driving)

Learn More

Animated Video

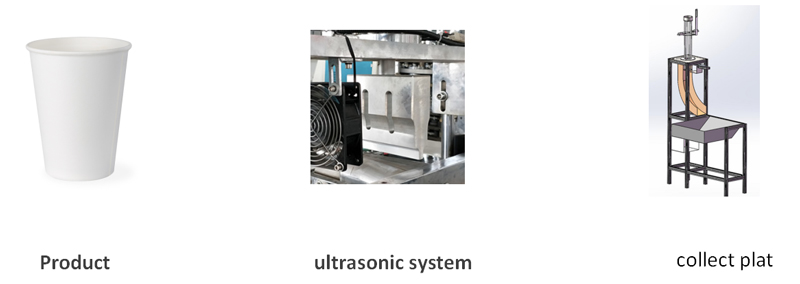

Product;Ultrasonic system;collect plat

MACHINE SPCIFICATION

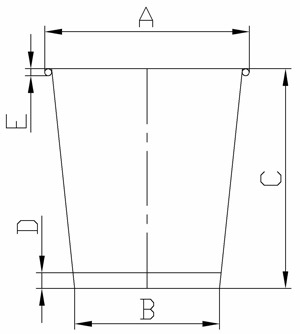

	ZB-D12S	ZB-D16G	ZB-D22G
top diameter	45-95mm	50-100mm	60-100mm
bottom diameter	30-65mm	40-65mm	40-65mm
height	30-105mm	30-135mm	30-165mm
bottom knurling	4-10mm

Cup size:	2-22oz
Suitable paper material:	150-380g/m2（single or double PE-coated paper)
Capacity:	50-70pcs/min
Power source::	220V、380V 50HZ（please inform us your power in advanced）
Total power:	4KW
Weight:	2000.00KG
Package size:	2600 x 1350 x 1700 mm
Working Air Source:	Air pressure 0.4Mpa;Air out-put:0.6m3/min
